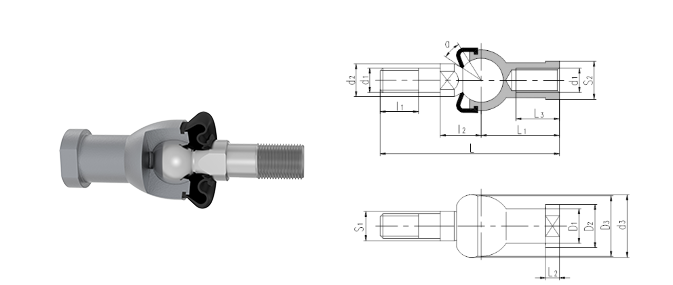

产品编号:SQZ…-RS 5~22
滑动磨擦副:钢/锌基合金
产品特点:直杆型球头杆端关节轴承球头座由特殊的锌基合金铸成,球头杆的材料是碳钢。
使用温度范围:-25℃~+120℃
轴 承 型 号 Bearing number | 外 形 尺 寸 Dimensions mm | 额定静载荷 Static load ratings kN | 重 量 Weight ≈kg | ||||||||||||||
d1 | d2
| d3
| l1
| l2 | S1 | L
| L1 | L2
| L3
| D1
| D2
| D3
| S2 | α˚ ≈ | |||
SQZ5-RS | M5 | 9 | 19 | 8 | 11 | 7 | 46 | 24 | 4 | 12 | 9 | 11 | 17 | 9 | 15 | 2.8 | 0.025 |
SQZ6-RS | M6 | 10 | 20 | 11 | 12.2 | 8 | 55.2 | 28 | 5 | 15 | 10 | 13 | 20 | 11 | 15 | 3.7 | 0.041 |
SQZ8-RS | M8 | 12 | 24 | 12 | 16 | 10 | 65 | 32 | 5 | 16 | 12.5 | 16 | 24 | 14 | 15 | 5.8 | 0.075 |
SQZ10-RS | M10×1.25 | 14 | 30 | 15 | 19.5 | 11 | 74.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 17 | 15 | 8.4 | 0.12 |
SQZ12-RS | M12×1.25 | 17 | 32 | 17 | 21 | 15 | 84 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 19 | 15 | 11 | 0.18 |
SQZ14-RS | M14×1.5 | 19 | 38 | 22 | 23.5 | 17 | 103 | 45 | 8 | 25 | 20 | 25 | 36 | 22 | 11 | 15 | 0.27 |
SQZ16-RS | M16×1.5 | 22 | 44 | 23 | 25.5 | 19 | 112 | 50 | 8 | 27 | 22 | 27 | 40 | 22 | 11 | 15 | 0.36 |
SQZ18-RS | M18×1.5 | 23 | 45 | 25 | 31 | 20 | 130.5 | 58 | 10 | 32 | 25 | 31 | 45 | 27 | 11 | 19 | 0.54 |
SQZ20-RS | M20×1.5 | 23 | 50 | 25 | 29 | 20 | 133 | 63 | 10 | 38 | 27.5 | 34 | 45 | 30 | 7.5 | 19 | 0.57 |
SQZ22-RS | M22×1.5 | 27 | 52 | 26 | 33 | 24 | 145 | 70 | 12 | 43 | 30 | 37 | 50 | 32 | 7.5 | 23 | 0.76 |
